Accupocket 150 دستگاه جوش اینورتر شارژی
- سبک و قابل حمل آسان
- قابلیت جوشکاری با باطری (شارژی)
- قابلیت جوشکاری تیگ
دستگاه جوش اینورتر شارژی آکیوپاکت قابلیت جوشکاری با الکترود های سلولوزی ,الکترودهای روتیلی,الکتروهای پایه و همچنین الکترودهای خاص تا قطر ۳.۲۵ استیل , استیل آلیاژ بالا و آلومینیوم را دارد.
دستگاه جوش اینورتر شارژی آکیوپاکت این امکان را به جوشکار می دهد که با یک شارژ کامل ۶ عدد الکترود سایز. ۳.۲۵ یا ۱۸ عدد الکترود سایز ۲.۵ را جوشکاری کند.
تکنولوژی آکیوبوست این اطمینان را به شما می دهد که بهترین قدرت جهت برقراری قوس الکتریکی پایدار و ثابت را در طول جوشکاری به کاربر دهد.
- Aluminium
- High-alloy steels
- Steel
Fields of use- Use in any industry
- 18 % d.c. at 140 A, 100 % d.c. at
- 40 A
- 52,8 V
- Elektrode-DC (10-140 A) /
- WIG-DC (3-150 A)
- 11 kg / 24.25 lb
Overview
- “S” mark, CE mark as standard
- Carrying handle
- Carrying strap
- Cellulose-compatible
Vertical-down compatible welding for cellulose electrodes - Continuous welding current adjustment using TIG welding torch
- Dust filter
- Generator-compatible
for mobile use, including construction sites - Hot start
Makes ignition of cellulose and rutile electrodes easier. - Overtemperature protection
- Soft start
For a stable arc when using basic electrodes that take little welding current to ignite - TIG Comfort stop
Prevents the arc from breaking at the end of welding. By moving the welding torch in a particular way, the welding current falls automatically, gas shielding is ensured, and the crater is filled perfectly. - Temperature-controlled fan
Reduces contamination inside the machine and increases power source service life - Vertical-down compatible welding (cellulose electrodes)
General
- “S” mark, CE mark as standard
- Carrying handle
- Carrying strap
- Cellulose-compatible
- Continuous welding current adjustment using TIG welding torch
- Dust filter
- Energy-saving inverter technology
- Generator-compatible
- Hot start
- Hybrid operation
- Overtemperature protection
- Soft start
- TIG Comfort stop
- Temperature-controlled fan
- Vertical-down compatible welding (cellulose electrodes)
Anzeige von
- Mains voltage monitor
- Operating mode
- Overtemperature
- Welding current
- Welding current (actual value)
- Welding voltage (actual value)
Operating modes
- Compensation charge
- Normal charge
- Quick Charge
- TIG
Settabel Parameters
- Dynamic
- Hot start
- Soft start
- Stepless welding power
- TAC (tacking acc. to program)
Options
Process
- Electrode DC
- TIG DC
Base materials
- Aluminium
- High-alloy steels
- Steel
Application area/sector
- Use in any industry

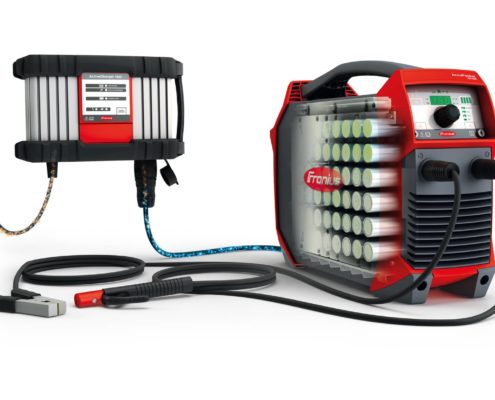

AccuBoost
AccuBoost delivers marked improvements in the ignition properties, arc stability and arc dynamics. The integral high-performance rechargeable battery momentarily delivers above-averagely high short-circuiting currents during welding, reliably minimising electrode-sticking (Y). The perfect interplay between the battery and the welding electronics also permits high welding voltage at high power. This prevents annoying arc-breaks (X).
دستگاه جوش الکترود AccuPocket
Technical Data
– | AccuPocket 150/400 TIG |
---|---|
52.8 V | Rated battery voltage |
10 A | Normal charging current |
18 A | Rapid charging current |
396 Wh | Battery capacity |
Li-ion | Battery-type |
Electrode DC (10-140 A) / TIG-DC (3-150 A) | Welding current range |
18 % D.C. bei 140 A 25 % D.C. bei 100 A 100 % D.C. bei 40 A | Welding current in hybrid mode, MMA welding 40° C (104°F) 40° C (104°F) 40° C (104°F) |
25 % D.C. bei 150 A 50 % D.C. bei 100 A 100 % D.C. bei 65 A | MMA current in hybrid mode, TIG welding 40° C (104°F) 40° C (104°F) 40° C (104°F) |
90 V | Open circuit voltage |
15 V | Reduced open circuit voltage |
IP 23 | Protection class |
AF | Type of cooling |
CE, S | Mark of conformity |
435 x 160 x 310 mm (17.12 x 6.29 x 12.20 in) | Dimensions (l x w x h) |
10.9 kg (24.03 lb) | Weight |
