دستگاه جوش چندمنظوره ترانس استیل ۲۲۰۰ (CO2,آرگون و الکترود)

TRANSSTEEL 2200

Multiprocess welding system – MIG/MAG, TIG and MMA

Whether the TransSteel 2200 is being used on a construction site, in a workshop, in agriculture, in metalworking trades,

or for assembly, repair and maintenance work, it easily masters MIG/MAG, TIG and MMA welding to the same high level.

THE ADVANTAGES OF THE TRANSSTEEL 2200

THREE PROCESSES, ONE POWER SOURCE

/ MIG/MAG, TIG and MMA welding

/ No compromises with the individual welding processes

/ Rapid switching between the processes

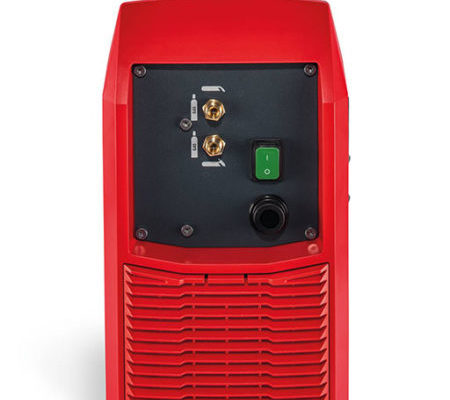

/ Easy process switchover thanks to an additional gas solenoid valve on the rear

دستگاه جوش اینورتر ترانس- استیل -۲۲۰۰

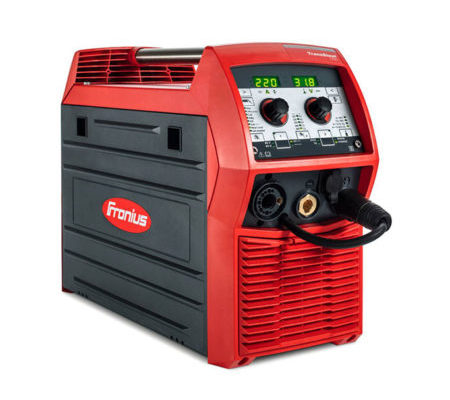

STATIONARY AND PORTABLE

/ Suitable for workshops, construction sites and assembly work

/ Easy to move – 15 kg

/ Carry handle plus an optional carrying strap

/ Skid runners on the sides

/ Compensation of mains voltage fluctuations in long mains leads

دستگاه جوش ترانس استیل 2200

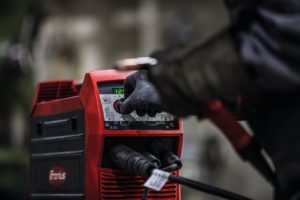

SIMPLE TO OPERATE

/ The same intuitive operating concept common to all Fronius power sources

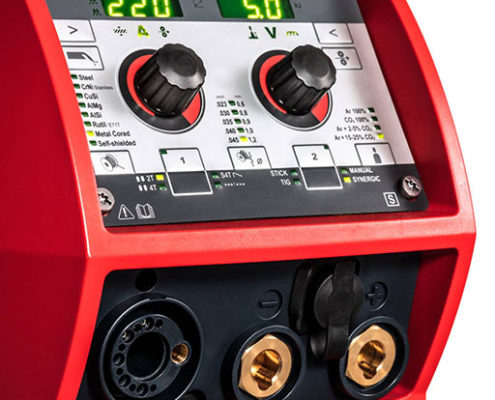

/ All important parameters can be viewed and adjusted on the front panel

/ Additional settings options in the sub-menu

/ Parameters can be changed through turn/press function

transsteel2200-دستگاه جوش اینورتر



THE MOST COMPACT TRANSSTEEL

/ Internal wirefeeder for D100 and D200 wirespools

/ Newly developed two-roller motor plate for stable wirefeed

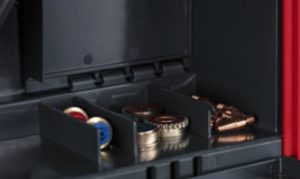

/ Wearing parts box inside the power source

transsteel2200-2دستگاه جوش اینورتر

TECHNICAL DATA

TransSteel 2200 Std TransSteel 2200 MV
Mains voltage -20 / +15% 230 V 230 V 120 V 120 V
Mains fuse protection (slow-blow) 16 A 16 A 20 A 15 A
Maximum primary current 26 A 26 A 29 A 20 A
Maximum primary power 5.92 kVA 5.92 kVA 3.26 kVA 2.35 kVA
Cos phi 0.99 0.99
Efficiency 90% (at 150 A) 90% (at 150 A) 87% (at 100% D.C.)
Wire speed 1.5 – 18 m/min 1.5 – 18 m/min
WELDING CURRENT RANGE
MIG/MAG 10 – 210 A 10 – 210 A 10 – 135 A 10 – 105 A
MMA 10 – 180 A 10 – 180 A 10 – 110 A 10 – 90 A
TIG 10 – 230 A 10 – 230 A 10 – 160 A 10 – 135 A
WELDING CURRENT
MIG/MAG
10min/40 °C (104 °F) 30% D.C. 210 A 210 A 135 A 105 A
10min/40 °C (104 °F) 60% D.C. 170 A 170 A 120 A 95 A
10min/40 °C (104 °F) 100% D.C. 150 A 150 A 105 A 80 A
MMA
10min/40 °C (104 °F) 35% D.C. 180 A 180 A 110 A 90 A
10min/40 °C (104 °F) 60% D.C. 150 A 150 A 100 A 80 A
10min/40 °C (104 °F) 100% D.C. 130 A 130 A 90 A 70 A
TIG
10min/40 °C (104 °F) 35% D.C. 230 A 230 A 160 A 135 A
10min/40 °C (104 °F) 60% D.C. 200 A 200 A 150 A 120 A
10min/40 °C (104 °F) 100% D.C. 170 A 170 A 130 A 105 A
Open circuit voltage 90 V 90 V
OUTPUT VOLTAGE RANGE
MIG/MAG 14.5 – 24.5 V 14.5 – 24.5 V
MMA 20.4 – 27.2 V 20.4 – 27.2 V
TIG 10.4 – 19.2 V 10.4 – 19.2 V
Degree of protection IP 23 IP 23
Type of cooling AF AF
Dimensions l x w x h 560 x 215 x 370 mm / 22.1 x 8.5 x 15 in. 560 x 215 x 370 mm / 22.1 x 8.5 x 15 in.
Weight 15 kg (33.1 lb) 15.2 kg (33.5 lb)
